O'CONNOR 2575D

DESCRIPTION

The O’Connor 2575D head is engineered to give you maximum control and stability no matter where the camera mount travels in the pan or tilt axis. The sinusoidal counterbalance system offers true and precise balance at any point in the tilt range. Add to this O'Connor's patented ultra-smooth, continuous fluid drag and you get the best of all possible combinations.

SPECS:

Load Capacity: 60.5 kg
Diameter/Thread: Mitchell
Counter Balance System: Continuously variable dual-axis sinusoidal counterbalance
Counter Balance: Range 22.7 to 60.5 kg
Center of Gravity: 10.2 to 20.3 cm
Quick Release/Wedge: Plate Requires at least one platform (Oconnor, 120mm Euro, Panavision Dovetail and Arriflex Plates)
Balance Plate: Sliding, 3/8″ or 120mm Screws (depending on plate)
Tilt Drag: Continuously variable true fluid drag
Tilt Range: -90º to +90°
Tilt Lock: Caliper brake
Spring Loaded Counter Balance: Continuously variable true fluid drag
Pan Range: 360°
Pan Lock: Caliper brake
Leveling Bubble/Illuminated: Yes, Illuminated
Temperature Range: -40° to +140°F
Weight: 10.4 kg

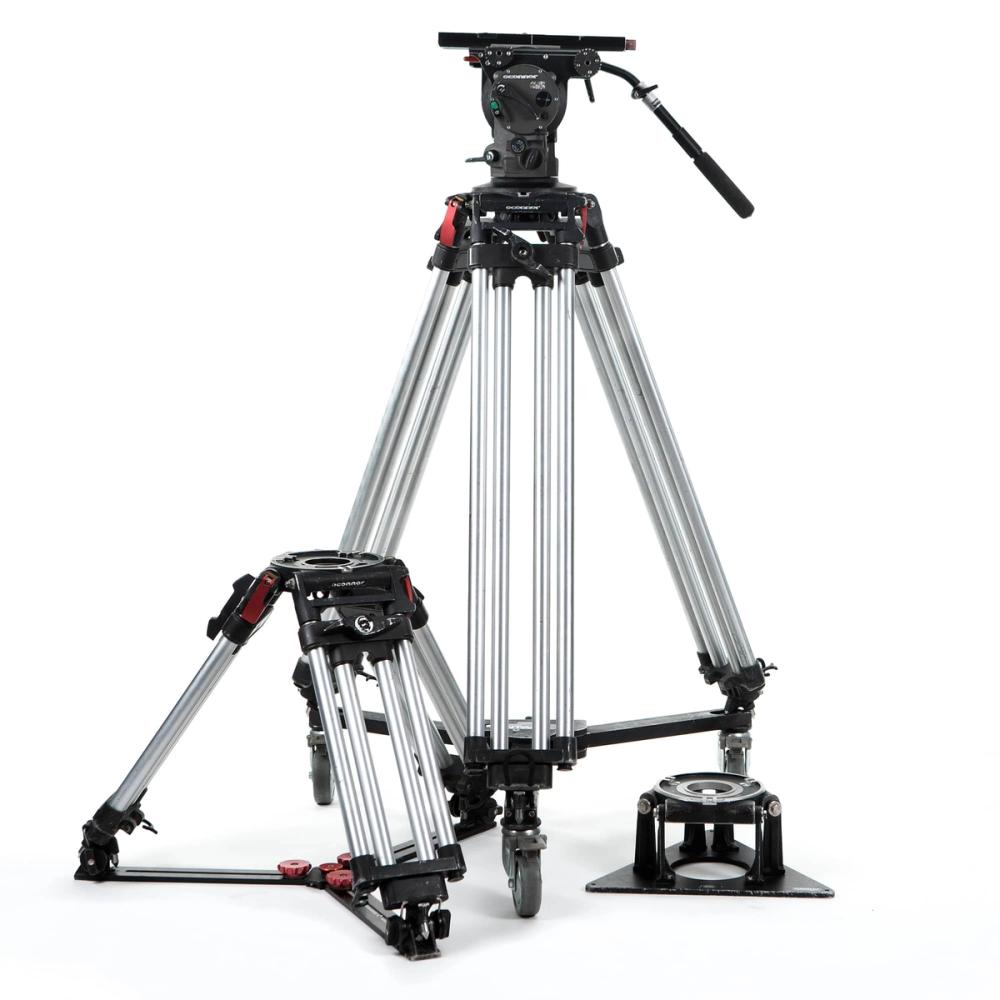

KIT INCLUDES:

1x O'connor 2575d head
1x Sliding Plate
1x Plate with screws
1x Tall Tripod
1x Bass Tripod
1x Michell Cup
1x Spider
1x Rolling spider
1x Rudder
x2 Transport tube
1x Head transport box
