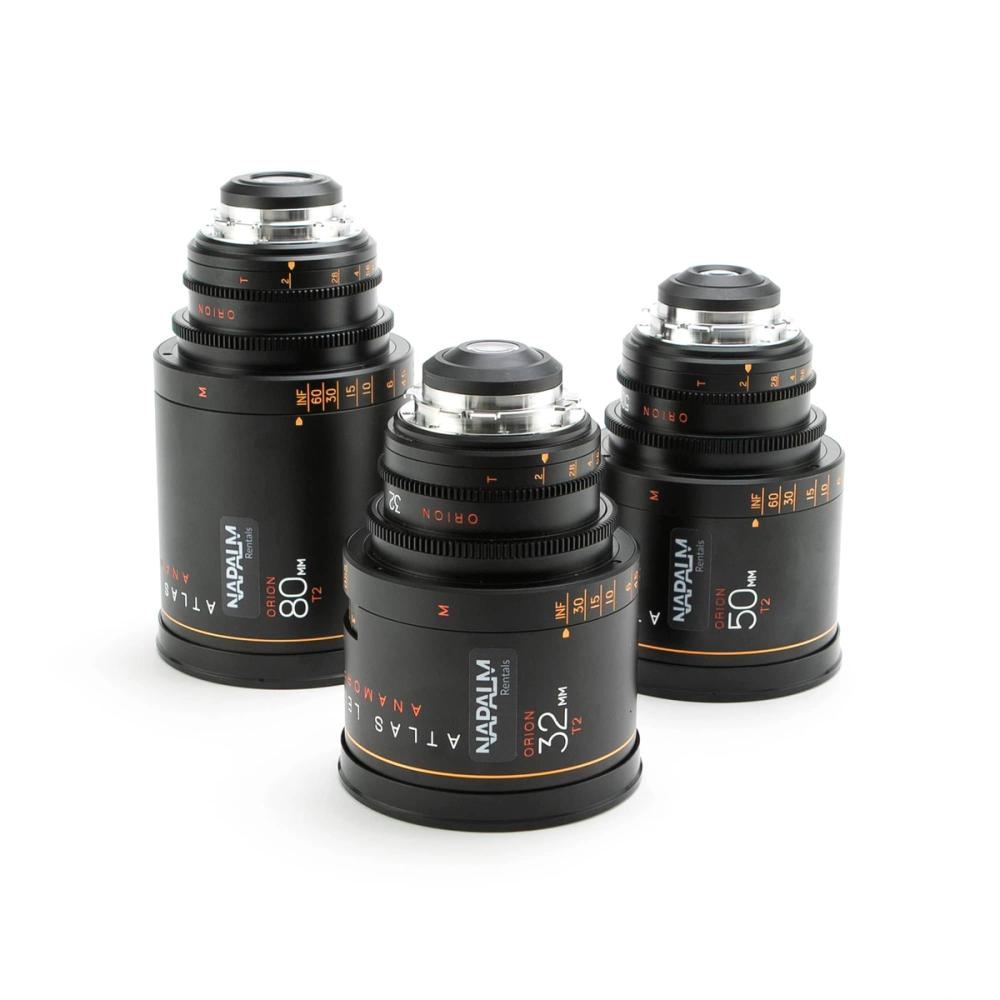

ATLAS CO Orion Anamorphic (32-50-80mm) T.2 - S35

DESCRIPTION

The ORION series anamorphic lenses are designed to accommodate the rotating mirror shutter of 35mm film cameras that follow ARRI's PL flange requirements. The focus has a 270° rotation allowing fast rack focus and smooth bokeh on foreground subjects (usually close-ups). The CINE PITCH 0.8 modulation gear on both the iris and focus ring are separated to allow simultaneous lens control even when two motors are mounted on the same side of the lens.

SPECS:

Diameter: 114mm
Mount: PL

SET:

30mm: T2 / 0,53m / 2,1 Kg
50mm: T2 / 0,76m / 2,3 Kg
80mm: T2 / 0,91m / 2,7 Kg
