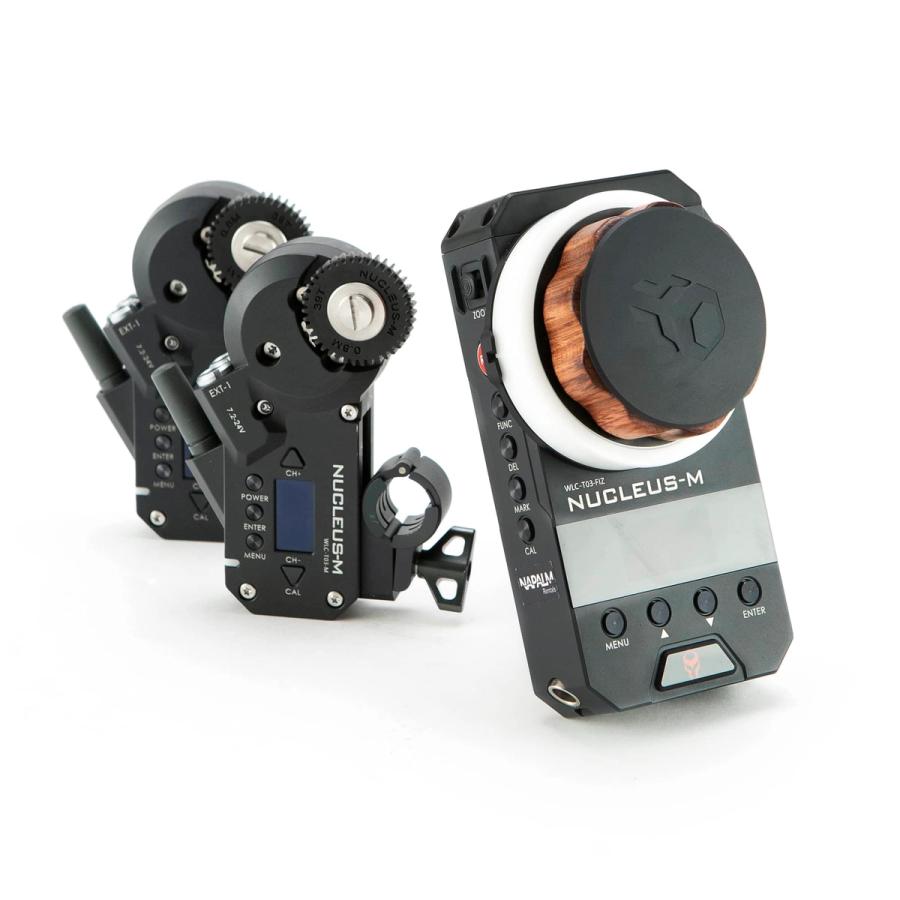

TILTA NUCLEUS - M

Lens Control System features a 1000' transmission range and comes with two lens drive motors with built-in wireless receivers (one is an encoder motor, the other is a standard motor), a FIZ hand controller, and two handgrips—one to control focus, and the other iris and zoom. The lens drive motors each feature a cine standard 0.8 MOD drive gear, and two 7-pin connectors that enable you to freely swap or interchange each motor. The motors power by daisy-chaining using the 7-pin cables, and each motor includes a 19mm rod clamp with 19 to 15mm reducing bushing.

SPECS:

Wireless Range 304 m
Material of Construction Aluminium alloy, stainless steel, ABS plastic, rubber,
Power Batteries: 3.7 VDC, 3000 mAh
Battery Charger: 100 to 240 VAC, 50/60 Hz, 0.15 A; 5 VDC, 2 A
Dimensions Motor: 11.43 x 8.26 x 3.49 cm
Battery:
Diameter: 1.7463 cm
Length: 6.5088 cm
Weight Motor: 0.19 kg
0.22 kg (with 15mm rail adapter)
0.22 kg (with 19mm rail adapter)

FIZ Hand Unit
0.44 kg (with focus disk, no batteries)
0.53 kg (with focus disk and batteries)

Handgrips
Right Grip: 0.26 kg (no batteries or adapters)
Left Grip: 0.24 kg (no batteries or adapters)

Rosette
Rosette Male to Handle Grip Adapter: 0.07 kg
25 mm/30 mm Gimbal to Handle Grip Adapter: 0.04 kg

KIT INCLUDES:

Follow Focus Tilta Nucleus - M Wireless
1x Wireless handheld unit
2x Fists
2x Wireless motors with support for bars de 19mm y 15mm
4x Discs for marks
1x Cable 7-Pin to 740mm D-TAP Motor Power Cable
1x Cable 296mm 7-Pin a 7-Pin Straight Motor Connection Cable
1x Cable 180mm 7-Pin a 7-Pin Right Angle (90 degree) Motor Connection Cable
x1 Battery chargers 18650 4 Slot Battery Charger
x2 Adapters Handle to Arri Standard Rosette
x2 Adapters Handle to Gimbal Bar (25mm/30mm)
x1 Strap de agarre Wireless FIZ Hand Unit Strap
x6 Batteries 18650
x1 Custom transporter suitcase
